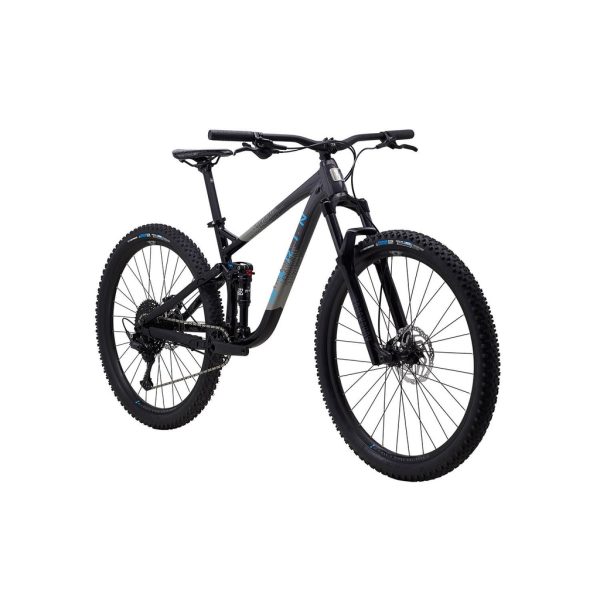

MARIN Rift Zone 1 29ER Dual Suspension Mountain Bike (2022) – Gloss Grey

Product Description

FAST PACED, EPIC RIDES
PUSHING THE ENVELOPE UP AND DOWN THE TRAIL
CHASING PERSONAL RECORDS

SERIES 3 ALUMINIUM FRAME
Rift Zone 1, 2, and 3 models feature Series 3 aluminium frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider a high feature and high-performing upgrade-worthy platform.

MULTITRAC SUSPENSION TECHNOLOGY
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.

INTERNAL ROUTING
Both carbon and alloy frames sport full internal cable routing in the front triangle with Marin’s all-new internal cable routing grommets, providing a clean and rattle free cable set up.

SPEC HIGHLIGHTS:
-RockShox Recon Silver RL 29″, 130mm Travel
-Shimano Deore M5100 11-Speed Drivetrain
-Shimano MT201 Hydraulic Disc Brake

SPECIFICATIONS
FRAME
Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148×12), 73mm Threaded BB w/ ISCG05 Tabs

FORK

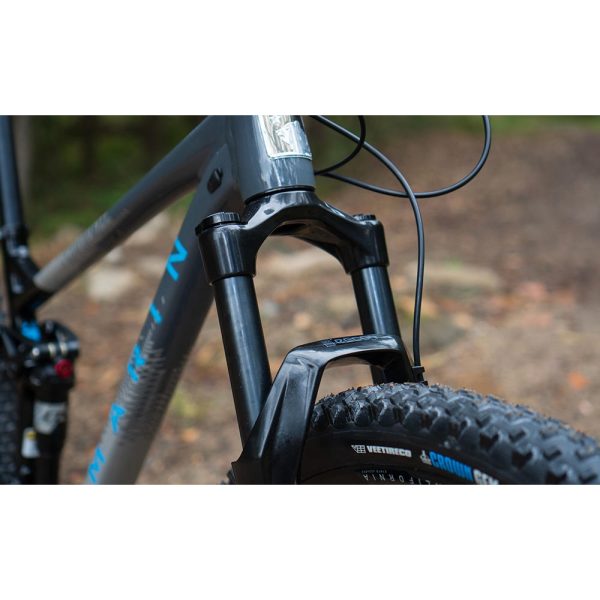

RockShox Recon Silver RL 29″, 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset

SHOCK
X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

RIMS
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

HUB REAR
Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

HUB FRONT
Shimano HF-MT400B, 110x15mm, Centerlock

SPOKES
14g Black Stainless Steel

TIRES
Vee Tire Crown Gem 29×2.35″, Dual Control Compound, Tubeless Ready

DERAILLEUR REAR
Shimano Deore SGS, Shadow Plus, Direct Attachment, 11-Speed

DERAILLEUR FRONT
–

SHIFT LEVER
Shimano Deore, 11-Speed, SL-5100R

CRANKSET
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

BOTTOM BRACKET
External Sealed Cartridge Bearing

CHAIN
KMC X-11 Silver and Black

CASSETTE
SunRace, 11-Speed, 11-51T, ED Black

BRAKES FRONT
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKES REAR
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKE LEVERS
Shimano BL-MT201 Hydraulic Disc

HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM
Marin 3D Forged Alloy, 35mm

GRIPS
Marin MTN, Closed End

HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”

SEATPOST
Marin Alloy, 30.9mm

SADDLE
Marin Speed Concept

PEDALS
–

EXTRAS
Closed 9-12 Thru-Axle QR System
